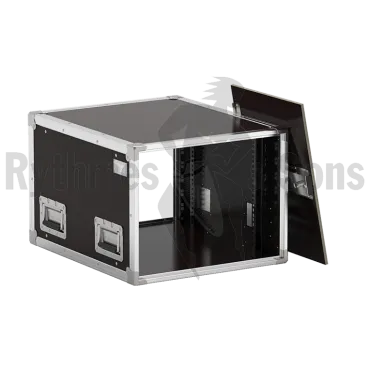

OPENROAD® 19" rack 8U depth 530mm
This rack takes advantage of the simple, ergonomic and original OPENROAD® system.
Read product descriptionDescription
OPENROAD® 19" rack 8U depth 530mm
This rack takes advantage of the simple, ergonomic and original OPENROAD® system.
The 2 removable lids are easy to open and take up little space.
They can handle equipment with a 530mm maximum depth (including fixtures).
It is equipped in front and back with 19" steel rack strip, perforated with squares holes.
The M6 nuts may be positioned at the desired place on the rail. The front of your equipment is protected by a recessed position in the rack.
Product specifications and fittings
- Rack-mount configuration
- Front and back OpenRoad® removable flat lids
- 9 mm BROWN phenolic faced birch plywood
- 2 recessed sliding latches

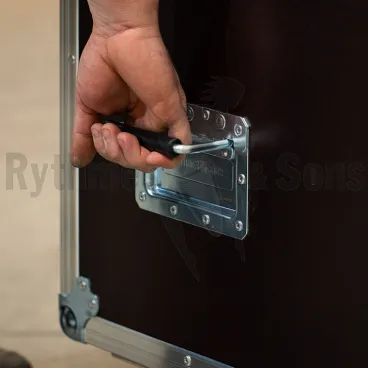

- 4 recessed spring-loaded handles with double sprung
- wooden skate on the underside
Interior features
- Front and back 19" steel double rack strip rails
Default
- Scratch on panel
Developed and manufactured by Rythmes & Sons in France
| Product reference | 9FOR 014396 |
| Overall dimensions with wheels (mm) | 630x535xH420 |
| Useful height (U) | 8U |
| Useful height (mm) | 356 |
| Useful depth (mm) | 530 |
| Material | 9 mm birch plywood |
| Finishing | Phenolic coated |
| Color | Brown |
| Type of Latches | Recessed sliding latches |
| Nomber of Latche(s) | 2 |
| Type of Handle | Steel Recessed flip handle(s) with double sprung |
| Dish for stacking | No |
| Shock mounted | No |
| Nuts + screws quantity | 24 |
| Max. load | - |
| Net weight (kg) | 16 |
A question about this product?
Contact our technical service
