OPENROAD® 19" rack 10U depth 530mm without lid
Product specifications and fittingsRack-mount configurationFront and back OpenRoad® removable flat lids 9 mm BROWN phenolic faced birch plywood4 recessed spring-loaded handles with double sprung4 swivel castors Ø100 (2 with brake) on mounting platesInterior features10U front and rear rack profiles100mm front setbackDistance between profile of 462mm70mm rear setback40 M6 cage nuts and screws4 spacers about 9cm long for plexiglass fixing (not supplied) 19" recessedDefaultTraces on the topGrooves
Read product descriptionDescription
OPENROAD® 19" rack
10U depth 530mm without lid
Product specifications and fittings
- Rack-mount configuration
- Front and back OpenRoad® removable flat lids
- 9 mm BROWN phenolic faced birch plywood

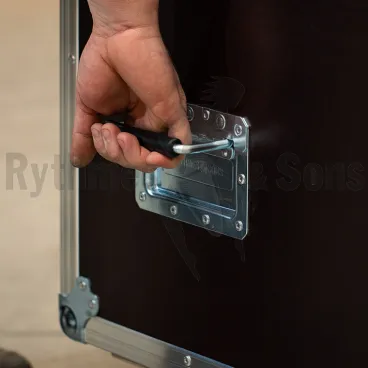

- 4 recessed spring-loaded handles with double sprung
- 4 swivel castors Ø100 (2 with brake) on mounting plates

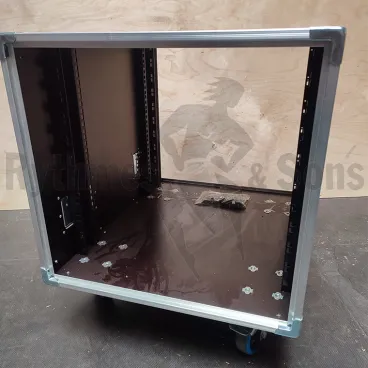

Interior features
- 10U front and rear rack profiles
- 100mm front setback
- Distance between profile of 462mm
- 70mm rear setback
- 40 M6 cage nuts and screws
- 4 spacers about 9cm long for plexiglass fixing (not supplied) 19" recessed
Default
- Traces on the top
- Grooves
| Product reference | 9FOR 013795 |
| Overall dimensions with wheels (mm) | 540x660xH630 |
| Useful height (U) | 10U |
| Useful height (mm) | 445 |
| Useful depth (mm) | 530 |
| Material | 9 mm birch plywood |
| Finishing | Phenolic coated |
| Color | Brown |
| Type of Latches | Recessed sliding latches |
| Type of Handle | Steel Recessed flip handle(s) with double sprung |
| Dish for stacking | No |
| Shock mounted | No |
| Max. load | - |
| Net weight (kg) | 22 |
A question about this product?
Contact our technical service
