Tilted 19" OpenRoad® mix-rack 16Ux14U
This unit holds small audio equipment with a 19" format. It will hold a mixing station on top and can accept readers, amps, and other 19" accessories.
Read product descriptionDescription
Open Road® 19" mix-rack with castors 16U x14U tilting
This unit holds small audio equipment with a 19" format. It will hold a mixing station on top and can accept readers, amps, and other 19" accessories.
It allows for quick setup of a complete audio system. It is ideal for setting up equipment for use.
Product specifications and fittings
- 9 mm BROWN phenolic faced birch plywood
- Front and top OpenRoad® removable flat lids
- Hinged back access door
- 6 recessed sliding latches
- 4 recessed spring-loaded handles with double sprung

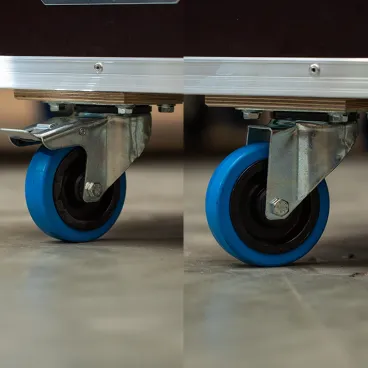

- 4 swivel castors Ø100 (2 with brake)
Interior features
- Front and back steel double rack strip 16u
- Top steel rack strip tilting 14U. Height under lid = 155mm
- 2 units rack panel on the front (* Additional 2U (90mm) are reserved in the upper part for the thickness of the mixing console and closed by the front panel provided.)
Default
- Impact on the rear panel
Developed and manufactured by Rythmes & Sons in France
*** WARNING, with some consoles the racking kit is optional ***| Product reference | 9FOR 014386 |
| Overall dimensions with wheels (mm) | 760x580xH1095 |
| Useful height (U) | 16U |
| Depth (U) | 14U |
| Material | 9 mm birch plywood |
| Finishing | Phenolic coated |
| Color | Brown |
| Nomber of Latche(s) | 6 |
| Castors | 4 swivel castors Ø100 (2 with brake) |
| Nuts + screws quantity | 60 |
| Packed brand | ALLEN & HEATH, ROLAND, SOUNDCRAFT, YAMAHA |
| Packaged product | YAMAHA : 01V96i, EMX 5014C, EMX 5016CF, LS9-16, MCP 12X, MCP 16X, MG16, MG166C, MG166XU, MG16XU, MG20, MG206C, MG20XU, O1V96 ROLAND : M-200 V-MIXER, M-300 V-MIXER ALLEN & HEATH : PA12-CP, QU-16, SQ-5, WZ 12:2 POD REAR, WZ 14:4:2 POD REAR, WZ 16:2 POD REAR, WZ3 12M, WZ3 16:2 DX SOUNDCRAFT : SI COMPACT 16, SI EXPRESSION 1, SI PERFORMER 1 |
| Net weight (kg) | 48 |
